Therma Gauge

MADE TO ORDERSKU#: TD10-EL0

$0.00

Therma Gauge Liquid Level Gauge

The Therma Type H Liquid Level Gauge is a reliable, swing arm type tank gauge used for measuring all types of liquid levels. Its simple mechanical design promotes durability, minimal upkeep, quick installation, and easy/inexpensive repairs.

This liquid level gauge is custom made in house to fit your tank. We can accomodate any size tank from 6 inches to 12 feet in depth, we can also account for double walls and pipe risers, and we offer multiple materials of construction to accomodate nearly any type of liquid.

The primary difference between the Therma Gauge and the At A Glance Direct Reading gauge is the bushing. This tank gauge has an easily removable bushing which allows you to thread the bushing into the tank first. Then drop the gauge in and tighten up the red nut. This allows you to aim the swing arm precisely where you want it, and eliminates the swing arm spinning inside the tank while you are threading the indicator in.

Type H Standard (+...)
Type PH all Plastic (+...)
Type H Stainless Level 1 (+...)
Type H Stainless Level 2 (+...)
Type H Stainless Level 3 (+...)

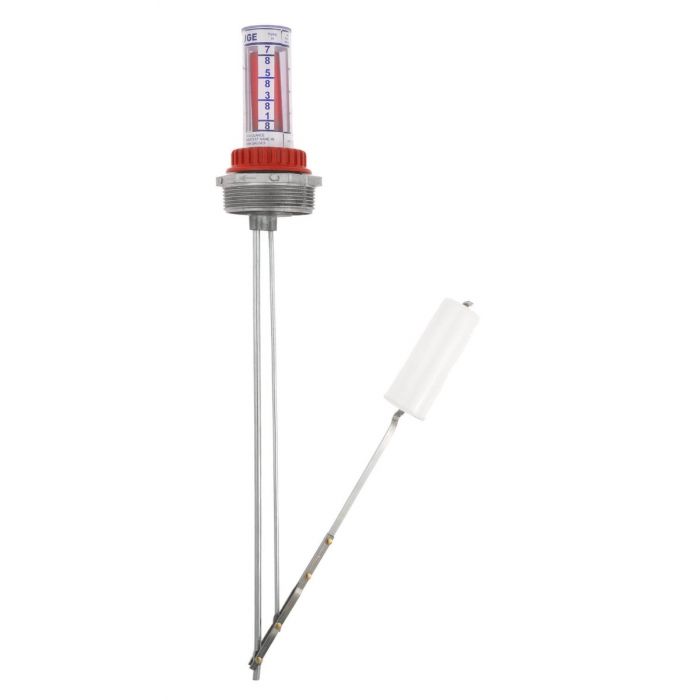

Liquid Level Gauge. Galvanized Steel Rods. Aluminum Bushing. HDPE Plastic Float.
Liquid Level Gauge. Peek or Kynar Rods. PVC Bushing. HDPE Plastic Float.
Liquid Level Gauge. Stainless Steel Rods. Aluminum Bushing. HDPE Plastic Float.
Liquid Level Gauge. Stainless Steel Rods. Aluminum Bushing. Stainless Steel Float.

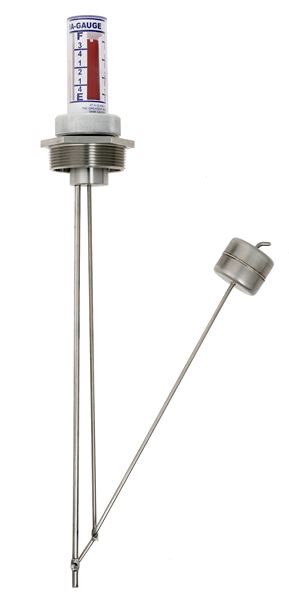

Liquid Level Gauge. Stainless Steel Rods. Stainless Bushing. Stainless Steel Float.
NPT - National Pipe Thread
Available Range: 10 to 144 By 1/4
Level of Liquid being measured in tank eighths from empty to full. (Provide measurement in inches.)
Available Range: 0 to 12 By 1/4
Distance from full to gauge threads. This is dead space on top of tank, usually caused by pipe risers or insulation. May be 0 inches.
Glass Calibration, replaces inner plastic piece of calibration with glass. Used for protection from heat, fumes, etc...
Solid Glass Calibration. Replaces all plastic on top of gauge with one thick solid glass top. Requires ALN or ALG.
None
Dalarm (+...)
LED AAG (+...)
Ralarm (+...)
adds a direct mounted audible alarm to the gauge
adds a remote mounted audible alarm to the gauge
adds a remote display capability to our direct mount gauge.
None (+...)
ALN (+...)
PVN (+...)
ALG (+...)
PVG (+...)
PVN (+...)
PVG (+...)
PVN (+...)
None (+...)
ALN (+...)
PVN (+...)
ALN (+...)
PVN (+...)
ALN (+...)
PVN (+...)
ALN (+...)
PVN (+...)
ALG (+...)
PVG (+...)
ALN (+...)
PVN (+...)
ALG (+...)
PVG (+...)
Replace the Red HDPE Lock Nut with an Aluminum Lock Nut
Replace the Red HDPE Lock Nut with a PVC Lock Nut.
Replace the Red HDPE Lock Nut with an Aluminum Gauge Guard
Replace the Red HDPE Lock Nut with a PVC Gauge Guard
Replace the Red HDPE Lock Nut with an Aluminum Lock Nut
Replace the Red HDPE Lock Nut with an Aluminum Gauge Guard
Replace the Red HDPE Lock Nut with a PVC Gauge Guard
Replace the Red HDPE Lock Nut with a PVC Gauge Guard PVN still an option
Replace the Red HDPE Lock Nut with a PVC Gauge Guard PVN still an option
Product total
Options total
Grand total
SKU: TD10-EL0 Categories: ,

Product Attachments

Related Products

Therma Gauge Overview

What it is

Top mounted liquid level gauge that can measure from 6 inches to 144 inches in depth. Bushing size can be 2” or 1.5”. Gauges are custom made in house to fit your tank. Can also accommodate for double walls and pipe risers. The Type H Gauge has a 2 piece bushing construction that allows you to aim your swing arm away from walls, corners, and other obstructions.

Additional Options – Not Included

Audible Alarm Accessory

This add on feature can turn your mechanical gauge into an audible Hi or Lo level alarm.

LED At-A-Glance Accessory

Another add on feature. This can give your mechanical gauge remote reading capability.

Gauge Guard

A cover that protects the exposed plastic components on top of the gauge.
