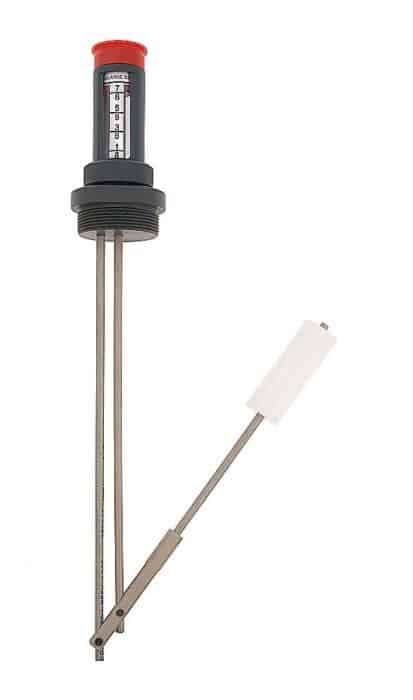

The Direct Reading Tank Gauge

The At-A-Glance Type D Liquid Level Gauge is a reliable, swing-arm type tank gauge used for measuring all types of liquid levels. This sight gauge’s simple mechanical design promotes durability, minimal upkeep, quick installation, and easy/inexpensive repairs. This mechanical level gauge is custom-made in-house to fit your tank. We can accommodate any size tank from 6 inches to 12 feet in depth, we can also account for double walls and pipe risers, and we offer multiple materials of construction to accommodate nearly any type of liquid.

Type D Standard (+...)
Chemical Sight Gauge
Type D Stainless Level 1 (+...)
Type D Stainless Level 2 (+...)
Type PD All Plastic (+...)
Liquid Level Gauge, Galvanized Steel Rods, Aluminum Bushing, HDPE Plastic Float.
Liquid Level Gauge, Stainless Steel Rods, Aluminum Bushing, HDPE Plastic Float.
Liquid Level Gauge, Stainless Steel Rods, Aluminum Bushing, Stainless Steel Float
Liquid Level Gauge, Peek or Kynar Rods, PVC Bushing, HDPE Plastic Float.
Available Range: 8 to 144 By 1/4
Level of Liquid being measured in tank eighths from empty to full. (Provide measurement in inches.)
Available Range: 0 to 12 By 1/4
Distance from full to gauge threads. This is dead space on top of tank, usually caused by pipe risers or insulation. May be 0 inches.
Standard Plastic Calibration, inner plastic piece of calibration, and outer plastic material. Used for protection from heat, fumes, etc...
Glass Calibration, replaces the inner plastic piece of calibration with glass. Glass Inner and Plastic Outer Piece. Used for protection from heat, fumes, etc...
Solid Glass Top, replaces plastic calibration with a durable solid glass calibration, eliminates all plastic. Protects from heat, fumes, weather, sun, etc…
None
Dalarm (+...)
LED AAG (+...)
Ralarm (+...)
Adds a remote mounted audible alarm to the gauge
RDN
ALN (+...)
PVN (+...)
ALG (+...)
PVG (+...)
ALN (+...)
PVN (+...)
ALG (+...)
PVG (+...)
ALN (+...)
PVN (+...)
PVN (+...)
PVG (+...)
RDN
ALN (+...)
PVN (+...)
RDN
PVN (+...)
PVG (+...)
Replace the Red HDPE Lock Nut with an Aluminum Lock Nut
Replace the Red HDPE Lock Nut with a PVC Lock Nut.
Replace the Red HDPE Lock Nut with a PVC Gauge Guard
Replace the Red HDPE Lock Nut with an Aluminum Gauge Guard
Product total
Options total
Grand total

At A Glance Overview

What it is

Top mounted liquid level gauge that can measure from 6 inches to 144 inches in depth. Bushing size can be 2” or 1.5”. Gauges are custom made in house to fit your tank. Can also accommodate for double walls and pipe risers. The Type H Gauge has a 2 piece bushing construction that allows you to aim your swing arm away from walls, corners, and other obstructions.

Additional Options – Not Included

Audible Alarm Accessory

This add-on feature can turn your mechanical gauge into an audible Hi or Lo level alarm.

LED At-A-Glance Accessory

Another add-on feature. This can give your mechanical gauge remote reading capability.

Gauge Guard

A cover that protects the exposed plastic components on top of the gauge.

Replacement Parts

D-Kit

Replaces all of the gauge components from the red lock nut and up. Includes: Red HDPE Plastic Nut, Duro Nitrile Gasket, Plastic Cellulose acetate inner and outer calibration.

DG-Kit-ALN

Replaces all of the gauge components from the red lock nut and up with upgraded parts. Includes: Aluminum Lock Nut, Duro Nitrile Gasket, Plastic Cellulose acetate outer calibration, Glass inner calibration.

Instructions for Operation

This gauge is simple and has a direct reading level sensor. The top of the red indicator is an indication of the approximate fuel level in your tank. Once installed, you simply view the calibration to monitor your tank level. The indicator is calibrated in eighths of a tank on one side, and quarters of a tank on the other.
